Elcina

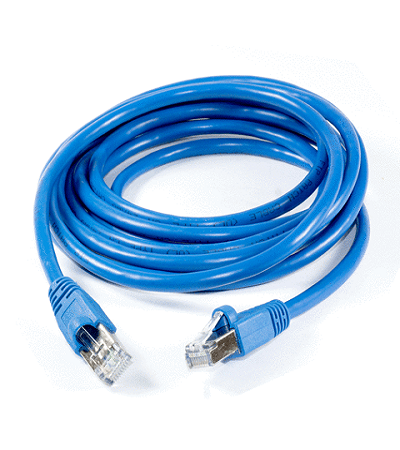

CAT 5 LAN Cable - High-Speed LAN Networking Solution

Categories: Cables & Wire

Sub Category: Power & RF Cables

Material: Plastic

Electric Specifications: 1. Bandwidth: Up to 100 MHz. 2. Data Transfer Rate: Up to 100 Mbps for distances up to 100 meters (Fast Ethernet). 3. Supported Standards: IEEE 802.3, 802.5, 802.12. 4. Backward-compatible with CAT 3. 5. Works with RJ45 connectors 6. Operating Temperature: -20°C to +60°C

Product Specification:

Pair Identification Pair1 Blue-white/Coextruded Blue Stripe on White Single Pair2 Orange-white/Coextruded Orange Stripe on White Single Pair3 Green-white/Coextruded Green Stripe on White Single Pair4 Brown-white/Coextruded Brown Stripe on White Single Tye Conductor Insulation Shielding Jacket UTP 0.51(24AWG) 0.91 £ 5.1 FTP 0.51(24AWG) 0.91 Al foil 6.3 Frequency Attenuation NEXT DB PS Next DB PSELFEXTdB RL DB MHz 0.772 1.8 64.0 64.0 63.0 16.7 1.0 2.0 62.3 62.3 60.8 7.0 DC Resistance 24AWG:94¶∏/km max@20°Ê DC Resistance Unbalance 2% max Characteristic Impedance 100°¿15¶∏@1-100MHz Characteristic Unbalance 1.000pF/km max@1KHz Velocity of Propagation 65% Insulation Resistance 5°¡103M ∏.km, min 500VDC Dielectric Strength 1000VAC 1min Rated Voltage 220VAC max

About the Company:

Company Name

Synergy Telecom Pvt. Ltd.

Category

Cables & Wire

Sub Category

Power & RF Cables

Activity

Component

Core Activity

Manufacturing

Location

New Delhi

Company Details:

Synergy Telecom Pvt. Ltd., established in 2001, is a leading manufacturer, importer, and exporter specializing in RF Connectors, Microwave products, and Antennas. We also manufacture surge arrestors and protectors and trade in coaxial cables, optical fiber products, and raw ceramic powder materials used in the manufacturing of RF and microwave components. Our philosophy is to anticipate market needs and maintain a robust inventory of the most popular products within our business domain. By delivering trusted products, we have established ourselves as a place of excellence. We are committed to total customer satisfaction and continually improve our product quality to meet diverse requirements. Initially focusing on the telecom industry, Synergy grew to become the largest stockist of telecom products within 15 years through strategic planning and hard work. Driven by a vision for a sustainable future, we are now actively promoting alternate energy solutions. Collaborating with leading Solar EPC manufacturers, Synergy is contributing to the advancement of solar energy as a reliable and sustainable resource to help preserve the planet for future generations.
